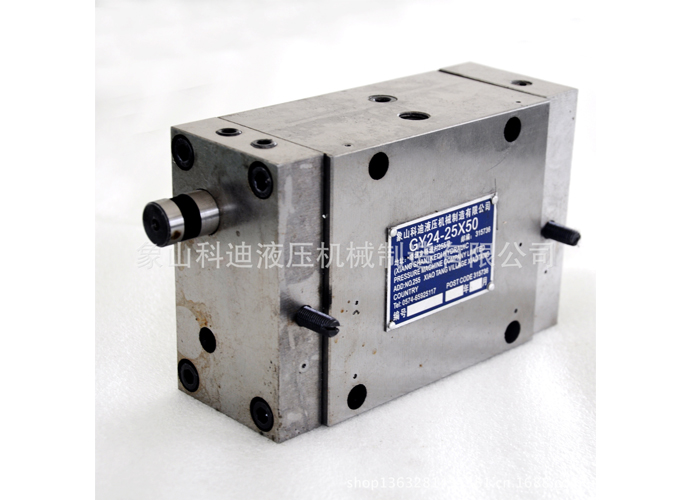

The product name | 操纵箱CY24A-25*50 | brand | Xiangshan Cody hydraulic machinery | model | cy24-25*50 |
specifications25*50 | The material | Gray cast iron | For machine tools | M131 cylindrical grinding machine |
|
Samples or spot | The spot | Whether the standard parts | yes | Whether the inventory | yes |
Whether the wholesale | yes |
|
|
|
|
CY24 control box for schedule control, the machine hydraulic system, its function to control the movement of the working mechanism, stopping and reversing. The speed of movement of the working mechanism can be infinitely adjustable-speed. The control box can guarantee the smooth movement when low speed, working mechanism reversing accurately, without stamping. So for low speed, smooth movement request, directional control accuracy requirement especially for accurate work institutions. Such as universal cylindrical grinder, etc.
CY24 control box by a pilot valve, reversing valve, a throttle valve, etc. Pilot valve by the workbench collision block toggle, has cut off oil cylinder to work and the manipulation of reversing valve reciprocating movement. Directional control valve by a pilot valve operating around mobile change flow direction make workbench reciprocating motion. The workbench's movement speed and start to stop all by open throttle valve to achieve.
The control box for the plate connection.
